熔炼设备-高真空合金熔炼炉 JDF3-GZL8

1、采用中频感应,熔炼时间短,工作效率高。

2、采用高真空水冷铸造室,所以能防止金属材料的氧化及杂质的混入,为此适合于高纯度金属材料或含有容易氧化元素的熔炼。

3、采用高真空状态下机械搅拌功能,成色无偏析。

4、采用高纯惰性气体保护下熔炼,所以石墨坩埚氧化损耗极少。

5、采用自动倾倒浇注,操作更简单。

6、浇注过程中模具采用自动加热更好的保证了浇注质量。

7、自带二次加料功能,能有效控制低温金属添加的时间。

1.Adopt   medium  frequency   induction,short   melting  time  and   high work efficiency.

2.The  high-vacuum  water-cooled  casting  chamber  is  used  to   prevent the oxidation of metal materials and the incorporation of   impurities.For  this  purpose,it  is  suitable  for   high-purity  metal   materials or smelting containing easily oxidized elements.

3.The  mechanical  stirring function  under  high vacuum  state  is   adopted,and the color formation is not segregated.

4.The  smelting   is   protected   by   high-purty   inert  gas,so  the   graphite ruthenium has very little oxidation loss.

5.Using    automatic    pouring    and    pouring,the    operation    is   simpler.

6.The mold is automatically heated during the pouring process   to ensure the quality of the casting.

7.With a secondary feeding function,can effectively  control the   time of low temperature metal addition.


技术参数

Technical Parameter

电源

Power Supply

380V/50HZ/60HZ/三相五线

380V/50HZ/60HZ/Three-phase five-wire

容量

Smelting Capacity

8KG

输出功率

Output Power

15KW

熔炼时间

Melting Time

10-15分钟

10-15Mins

最高温度

Max Temperature

1600℃

熔炼金属

Applied Metal

合金

Alloy

极限真空度

Ultimate Vacuum

67*10⁻³pa

冷却

Cooling

自来水/冷水机

Running water/chiller

*容量可以根据客户需求定制*

*Can be customized according to customer requirements*

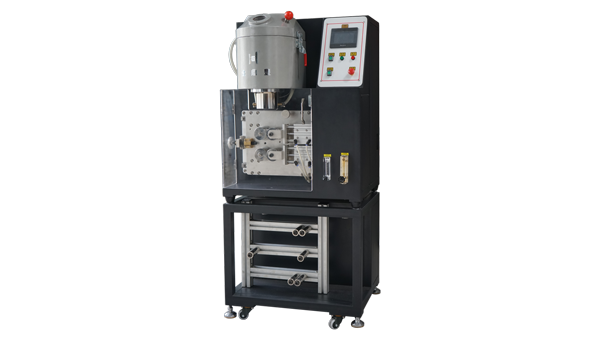

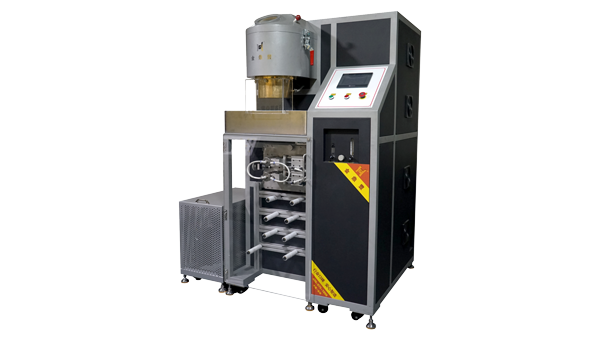

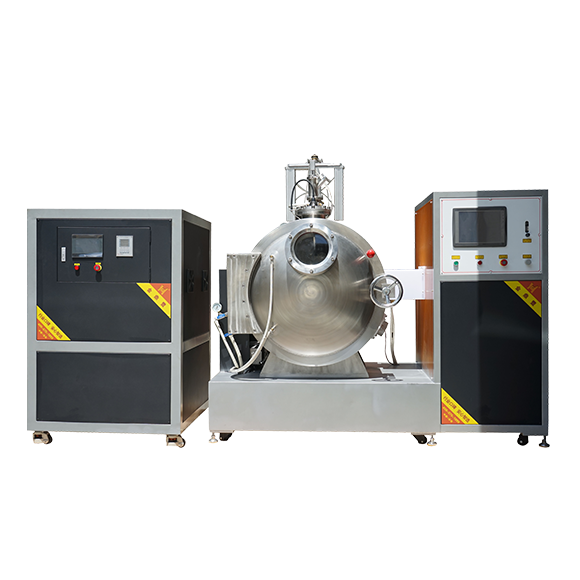

实拍展示

Real Shooting Display

适用场景

Applicable Scenarios

  • 首饰加工
  • 贵金属材料
  • 贵金属精炼
