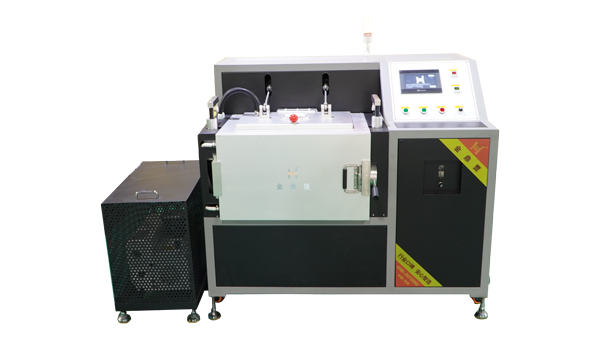

造粒设备-造粒机 JDF3-S30/50/100

该机具有一体化设计,结构紧凑,结构美观,占地面积小,速度快,自动频率跟踪,自由噪声,感应线圈超低压设计,机身完整的自我保护功能。特殊的水上循环相对阻塞颗粒本身的重力自身下降,使颗粒的球形看起来更好,机器适应环境更强的新不锈钢体,是您的预合成细金属的铸造的最佳选择。

The machine is featured with integrated design,compact and beautiful structure,small floor space,fast speed,automatic frequency tracking,free noise,ultralow-voltage design of induction coil,complete self-protection function of machine body,Special water rising cycle and relatively block the gravity of the particles themselves fall,making the sphericity of the granules looks better,the machine adapt to the environment syronger by the new stainless steel body,which is your best choice for making metal granules.

技术参数

Technical Parameter

电源

Power Supply

380V/50HZ/60HZ/三相五线

380V/50HZ/60HZ/Three-phase five-wire

容 量

Smelting Capacity

30 KG

50 KG

100 KG

输出功率

Output Power

23KW

30 KW

40 KW

造粒时间

Melting Time

15-20分钟  15-20Mins

20-30分钟  20-30Mins

30-45分钟  30-45Mins

最高温度

Max  Temperature

1200℃

熔炼金属

Applied Metal

金K金/银/铜等

Gold/K-gold/Siver/Copper and etc

冷却

Cooling

自来水/冷水机

Running water/chiler

*容量可以根据客户需求定制*

*Can be customized according to customer requirements*

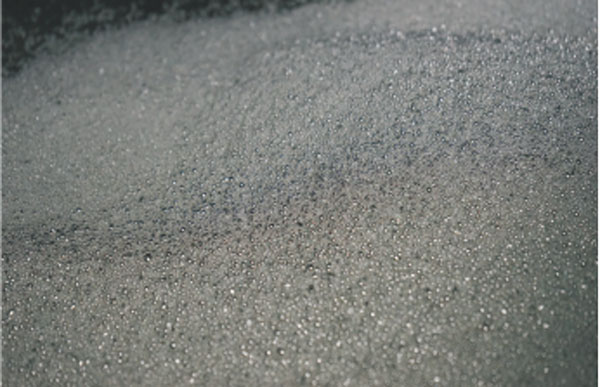

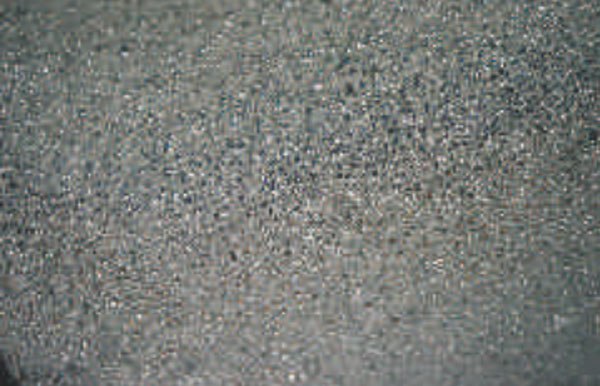

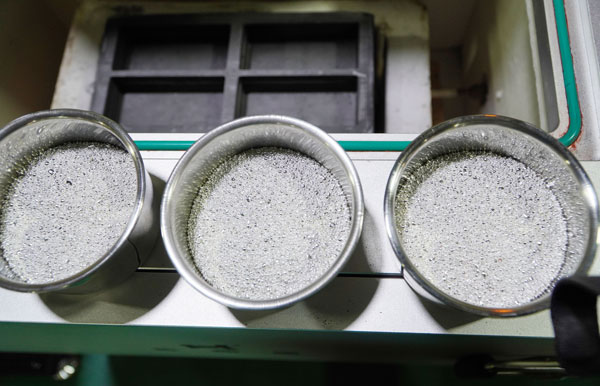

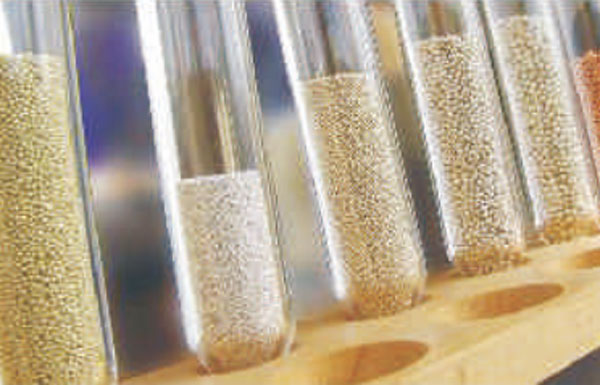

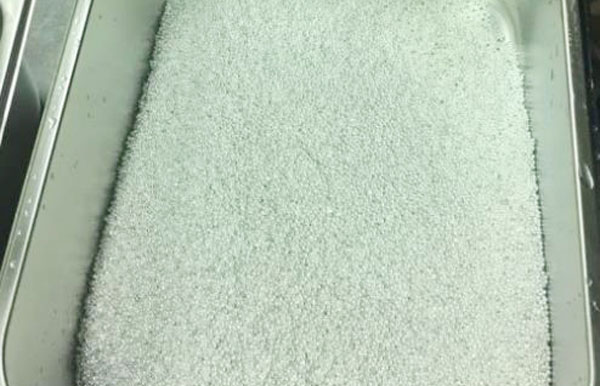

实拍展示

Real Shooting Display

适用场景

Applicable Scenarios

  • 首饰加工
  • 贵金属材料
  • 贵金属精炼
