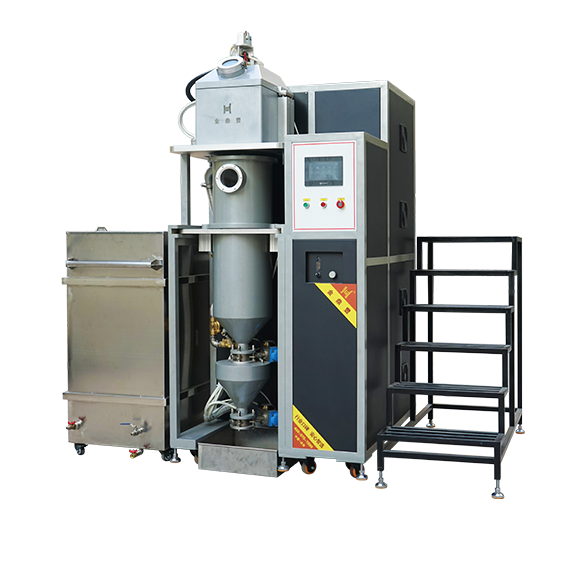

造粒设备-真空造粒机 JDF3-ZS30/50/100

本机采用先抽真空再加保护气,在双重保护作用下,使金属跟空气隔绝,洒珠时能避免高温下,金银洒珠造成的氧化及损耗。使金属成型效果质量是普通洒珠机的数倍,帮助生产成本大幅度降低。

The machine adopts vacuum first and then protects the gas.Under the double protection effect,the metal is insulated from the air.When the beads are sprinkled,the oxidation and loss caused by the gold and silver sprinkling beads can be avoided.The quality of the metal forming effect is several times that of the ordinary ballsprinkler,and the production cost is greatly reduced.

技术参数

Technical Parameter

电源

Power Supply

380V/50HZ/60HZ/三相五线

380V/50HZ/60HZ/Three-phase five-wire

容量

Smelting Capacity

30KG

50 KG

100 KG

输出功率

Output Power

23 KW

30 KW

46 KW

造粒时间

Melting Time

15-20分钟  15-20Mins

20-30分钟   20-30Mins

40-60分钟   40-60Mins

最高温度

Max Temperature

1200℃

熔炼金属

Applied Metal

金K金/银/铜等

Gold/K-gold/Siver/Copper and etc.

真空度

Vacuum Degree

1o

冷却

Cooling

自来水/冷水机

Running water/chiller

*容量可以根据客户需求定制*

*Can be customized according to customer requirements*

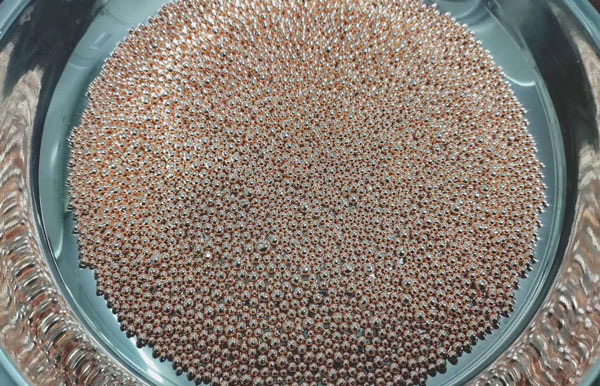

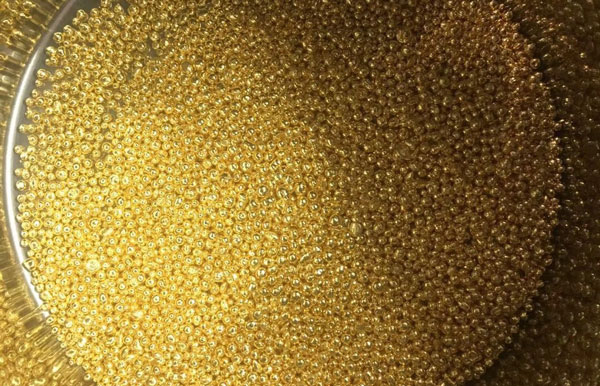

实拍展示

Real Shooting Display

适用场景

Applicable Scenarios

  • 首饰加工
  • 贵金属材料
  • 贵金属精炼
